S400

Activity Level 2 3
Impact Level

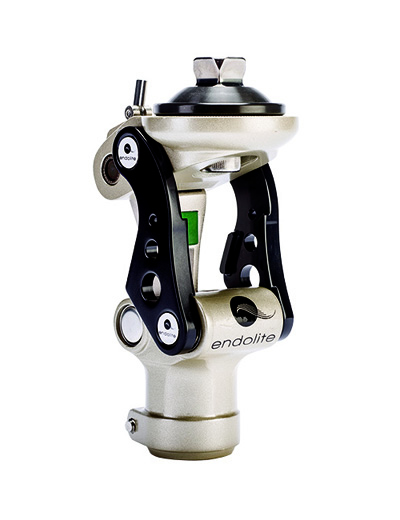

Polycentric locking knee, which folds away for a low profile cosmetic line when sitting. The knee can be set to operate as either a SAKL for maximum security or an MKL where the user might be able to utilise the swing function in appropriate settings.

Features

  • Compact low-profile polycentric locking knee
  • Good sitting cosmesis
  • Can be set as a S.A.K.L., M.K.L or free knee
  • Socket adaptors provide range of set up options
  • Geometric lock at heel strike (when set in free knee)
  • Adjustable extension assist spring
  • Adjustable geometry to reposition I.C.R
Hover

Technical Data

Max. user weight

125kg*

Activity level

2-3

Component weight

678g

Build height

130mm

Specification

Max. user weight: 125kg / 2
100kg / 3
Activity level:  2-3
Component weight:  678g
Build height: 130mm

* Maximum user weight dependent on activity level.

Ordering

Part Number: ENS400

Accessories:

Thigh release upgrade kit: P239443

Documentation

Flyer

Instructions for use

An annual visual inspection is recommended. Check for visual defects that may affect proper function. Maintenance must be carried out by competent personnel.

Blatchford trademarks.

Last updated: 5th December 2016
